Metal Karaoke Speaker Management Processor , AFC ADI Digital Echo Processor For Disco Party

Name: Metal Karaoke Speaker Management Processor AFC ADI Digital Echo Processor For Disco Party
Brand: FHB Audio
Price: 1 USD

China Metal Karaoke Speaker Management Processor , AFC ADI Digital Echo Processor For Disco Party factory

Brand Name : FHB Audio

Model Number : SP-46P

Certification : CE,ROHS

Place of Origin : China

MOQ : 2 Set

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 10000 Set per Month

Delivery Time : 1-10Set: 5-7day ;10-100Set:10-5Days

Packaging Details : Standard packaging;

Products Name : Speaker Management System

Keyword : DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer

Model No. : SP-46P

Analog Channels : 4 input,6 output

DSP Processing : ADI dual-core DSP chip ADSP-21571

Function : Automatic mixing,AGC,AFC,AEC,AFC

Sampling rate : 96KHz

Material : Aluminum

Color : Black

Application : Party

Input Interface : XLR balance interface

Certificate : CE,ROHS

XLR Input gain : 110 dB

Working Power Supply : 220V / 50Hz

Maximum input/Output level of music port : +21dBu(8.7V RMS)

Contact Now

Hot Selling Professional Metal Audio processor Karaoke Digital Echo Processor For Disco,Party

Main Features:

Adopts the ADI dual-core DSP chip "ADSP-21571" to perform audio data processing
64bit High-precision computing architecture: provides powerful computing power to support processor algorithms
96kHz High sampling rate: Data processing maintains high fidelity and high reduction characteristics
XLR balance interface (Kon interface) Input: plug and play: supports hot swap: prevents equipment damage caused by misoperation
Microphone frequency shift is available in the range of 2Hz to 8Hz and can be selected "OFF" to effectively prevent microphone noise
Automatic noise gate: Effectively reduces noise without adjustment
Effect Dynamic regulation: Enables a vocalist's voice to be more appealing
Mixer of each output channel: Music, microphone and effect mixing ratio can be set
Each output channel is equipped with a "twin engine pressure limit" to maximize the protection of sound equipment
Each output channel provides balanced regulation function and delay function
Constructs manager mode and user mode: The manager mode stores and adjusts parameters
Device allows nine effect modes to be stored inside and the desired mode can be selected by remote control
Recording output port: Outputs the rear output signal to an external recording device for storage

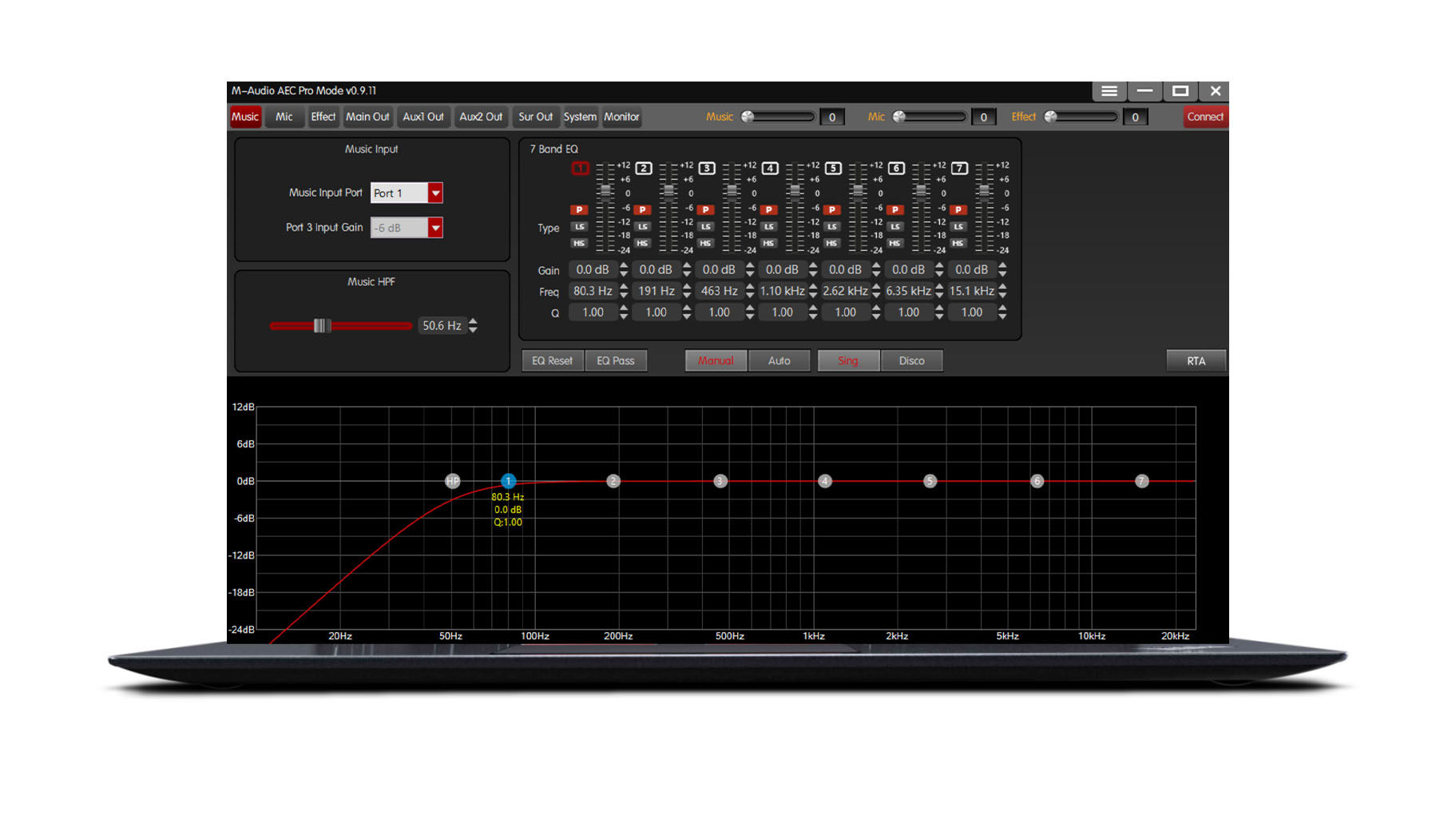

A convenient PC user interface software that switches between English and Chinese to facilitate the user to select a language based on usage
Connects to a computer through an RS232 interface to adjust parameters to ensure the stability of data transmission
Device brings in audio measurement system: accurate measurement of audio data helps call up the ideal sound

Specification:

Model No.	SP-46P
Maximum input/Output level of music port	+21dBu(8.7V RMS)
Microphone input sensitivity	640mV(out:8.7V)
XLR Input gain	-6dB,-3dB
SNR	110 dB
Power Supply	220V / 50Hz
Size	483 x 254 x 44mm(1U)

Metal Karaoke Speaker Management Processor , AFC ADI Digital Echo Processor For Disco Party

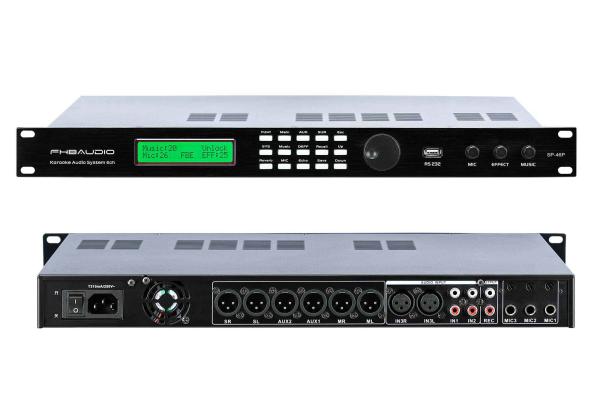

Products Overview:

Metal Karaoke Speaker Management Processor , AFC ADI Digital Echo Processor For Disco Party

1. Infrared receiver: Receive commands from the remote control.

2. LCD display: Displays the current menu and editable parameters under the menu.

3. Function button : Select the corresponding function and adjust it. All the functions of this machine can be operated on the panel, press the corresponding button to enter the setting interface of the parameter, the following is the function introduction of these function buttons

Input - - Music input port switch (requires the main interface to take effect)
SYS- - System parameter settings
Reverb - - Mixing parameter settings
Main- - Main channel parameter setting
Music - - Music related parameter settings
M IC- - Microphone parameter setting
AUX- - Auxiliary output parameter setting
DEFF- - Dynamic effect gain setting
Echo- - Echo parameter settings
SUR- - post parameter setting
Recall- - preset recall
Save- - data save
ESC- - Press to return to the main interface.
Up - - Press-down, the display cursor moves up, and the cursor moves up by one operation bit each time it is pressed.
Down - -Press - Down, the display cursor will move down the screen, and the cursor will move down one position each time it is pressed.

4. Function selection knob: switch between the programmable parameters and adjust the size.

5. RS232 interface: connect the machine with a computer with Windows system, and use the user interface software of the machine to control the machine.

6. Volume knob: adjust the volume of microphone, effect and music respectively
